Level Switch
Description
Product Showcase

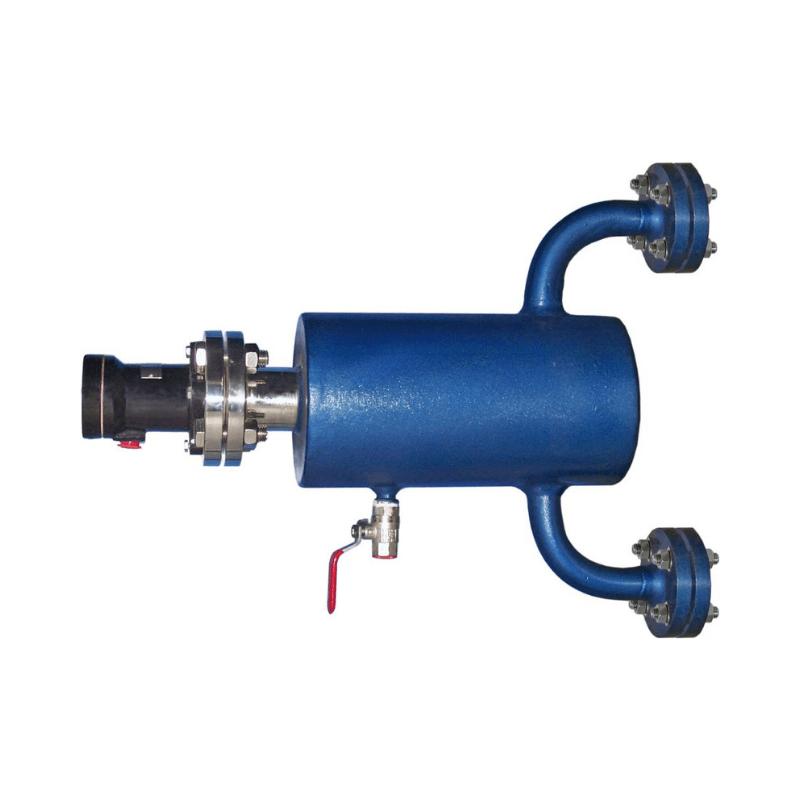

External cage type level switches are designed for side Mounting to a tank or vessel with threaded or flanged Pipe connections. External cage side mounting can be Used with isolation valve that allows level switch to Isolate from process that helps during shutdown Maintenance. External Cage mounting is available in Flanged/Socket Weld/Threaded connection as per customer Specifications. Two types of cages flanged cage and sealed cage.
Principal of Operation
The operating principle provides for magnetic switch action Resulting from a change in liquid level, which moves a magnetic Attraction sleeve into field of an externally located magnet. This principle eliminates problems associated with flexing Diaphragm seals below seals as well as coating problems Encountered by probe type devices.
Technical Specification
| Chamber Material | Carbon steel, SS304, SS316 |
| Enclosure | aluminum |
| Min. Specific Gravity | 0.5 S.G |
| Micro Switch | SPDT/DPDT |
| Max Temp. | 350⁰C(cooling fins provided) |
| Max. Pressure | 160kg/cm² |
| Attraction Sleeve | SS410 |
| Enclosing Tube | SS304 |
| Electric Connection | ½” NPT |
| Drain | ¾” NPT |
| Differential | maximum 30mm at S.G 1 |
| Repeatability | ±1.5mm at S.G 1 |
