Manual Valves

Cutter Valves
Cutter Valves manufactures engineered flow-control solutions that enhance safety, reliability, and performance in flow-control systems in oil & gas, power, and allied industries across the world.
Product Range :
  • Float type ball valve
  • Trunnion type ball valve

Cutter Valves are designed by specialists with deep understanding of industry requirements and practices, on state-of-the-art design and analysis software. A rigorous functional qualification and prototype test programme ensures that the customised solutions meet customer expectations.
The Quality Management System of Cutter Valves is certified to comply with ISO 9001. The company is
licensed to offer products monogrammed API 6D and ASME B16.34.
Cutter Valves have a manufacturing unit in India where cutting-edge technology and unmatched skill come together to create state-of-the-art solutions. Safety, Health and Environment standards govern every phase of the manufacturing process.

What is Important When You Purchase Valves for Your Process?
  • Reliability
  • Long life
  • Low emissions
  • Local support
  • Low cost of ownership
  • All the above

Cutter Valve is committed to delivering quality Valve products that meet or exceed your expectations. We continue to improve our performance levels using innovative technologies and processes, perfect execution principles, and promoting safety and quality among our employees.

Ball Valve Range
Cutter manufactures a comprehensive range of Ball Valves in sizes up to 8” and in ANSI Class up to #600 . The valves are offered in combination for size, pressure class, material, end-connection, etc, to suit varying applications in the energy sector.
Float type Ball Valves
VariantsTypeEnd Connections2”3”4”6”8”
Single-piece, Regular BoreFire-safeFlanged #150 / #300●●●●
Two-piece, Full BoreFire-safeFlanged #150 / #300●●●●●
Three-piece, Full BoreStandardScrewed / Socket-weld●●●
Flanged #150 / #300 / #600●
Fire-safeScrewed / Socket-weld*●
Three-piece, Regular BoreStandardScrewed / Socket-weld**●●●
Flanged #150 / #300 / #600●
Fire-safeScrewed / Socket-weld*●
Trunnion type Ball Valves
Trunnion-mounted Ball Valves meet the requirements of API 6D and can be offered with API 6D monogram. The valves are certified Fire Safe as per API 6FA, API 607 and ISO 10497. L&T TMBV is certified SIL-3 capable (Safety Integrity Level-3) as per IEC 61508.
VariantsASME Class2”3”4”6”8”
2-piece150●●●●●
300●●●●●
600●●●●●
3-piece150●
300●
600●●●

Feature & Benefits

Ball Valves are available in single-piece, two-piece, and three-piece constructions. In these valves, line pressure forces the floating ball against the downstream seat to effect bubble-tight sealing.
Compliance & Certifications
Cutter Ball Valves are designed in accordance with key standards.
ParameterStandard
DesignFloat-type Ball ValvesASME B16.34 API 6D
Trunnion-type Ball Valve
EndsFace-to-face/ End-to-end DimensionsAPI 6D / ASME B16.10
End Flange DimensionsASME B16.5/ 16.47
Butt-weld End DimensionsASME B16.25
Material of Construction
Cutter Valves are available in below materials:
PartBody Materials
Single piece
Two piece
Three piece
Body / Connector / InsertTrunnion-type Ball ValveASTM A216 Gr. WCB ASTM A105
BallFace-to-face/ End-to-end DimensionsAPI 6D / ASME B16.10
SeatPTFE / RPTFE / Special filled PTFE / PEEK / Devlon® / NXT-70 / SS316 + ST
StemASTM A479 Type 316
Body SealGraphitePTFE / RPTFE / Special filled PTFE / Graphite
Stem Thrust SealCarbon-filled PTFE
Stem PackingCarbon-filled PTFE/ Graphite
For Trunnion type
PartBody Materials
WCB/ WCCLCB/ LCC
Body / Connector / InsertA105N/ A216 Gr. WCB/ WCCA350 Gr. LF2/ A352 Gr. LCB/ LCC
ConnectorA105N/ A216 Gr. WCB/ WCCA350 Gr. LF2/ A352 Gr. LCB/ LCC
BallA182 Gr. F6a/ A105N + ENP Coated/ A182 Gr. F316/ F316LA182 Gr. F316/ F316L/ A351 Gr. CF8M/ CF3M
SeatPTFE/ RPTFE/ Nylon impregnated with MoS2/ PEEK/ Devlon®/ PCTFE
Seat RingA182 Gr. F6a/ A182 Gr. F316/ F316LA182 Gr. F316/ F316L
Coil SpringInconel X750
BearingSS-backed PTFE
SealsFKM (Viton®)/ HNBR/ Nitrile Rubber/ FFKM (Kalrez®) / Lipseals/ Graphite

PartBody Materials
WCB/ WCCLCB/ LCC
StemA479 Type 410/ A479 Type 316/ 316LA479 Type 316/ 316L
PackingGraphite
Body SealGraphite/ Spirally wound SS304/ 316 with Graphite Filler
StudA193 Gr. B7/ B7MA320 Gr. L7/ L7M
Hexagonal NutA194 Gr. 2H/ 2HM/ 7A194 Gr. 7/ 7M
Gear UnitWorm Gear

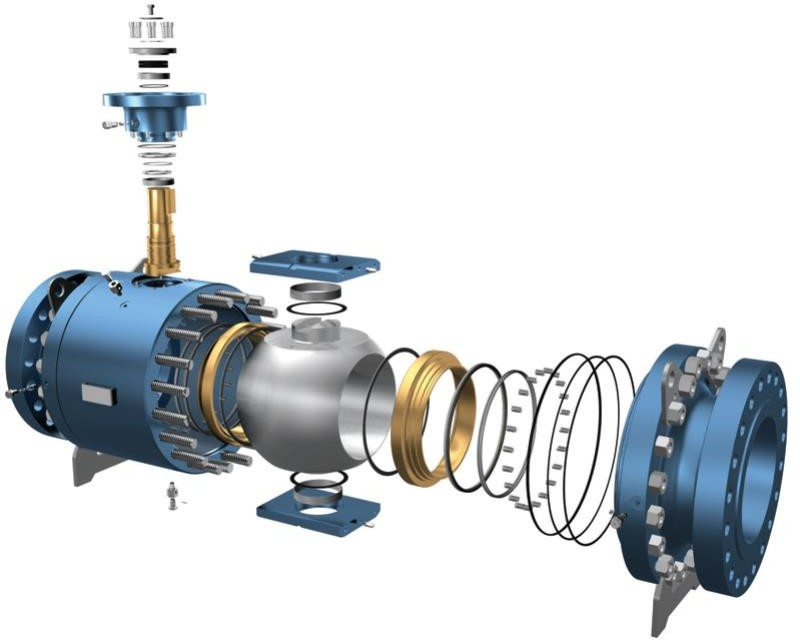

2-piece Trunnion-mounted Ball Valve

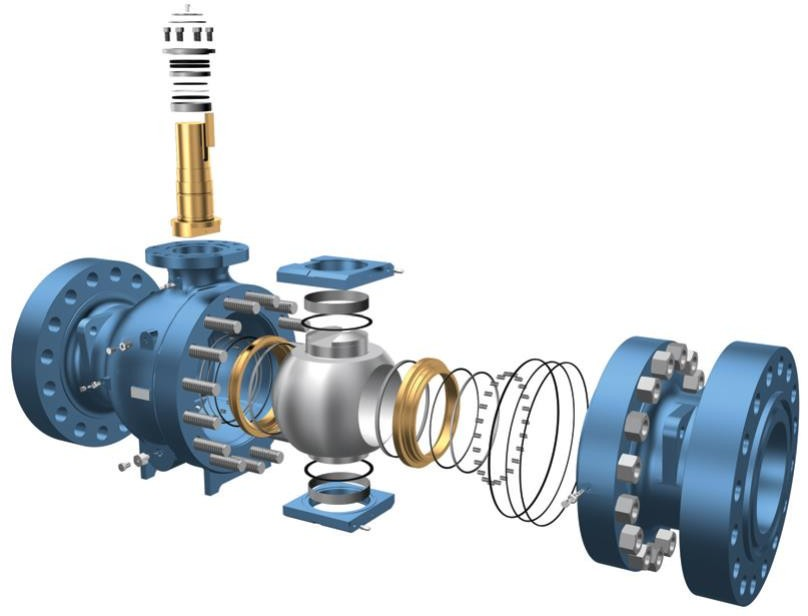

3-piece Trunnion-mounted Ball Valve
For Trunnion type
Cutter Valve have a modern manufacturing facility in Palwal, India. The plant is equipped with all amenities to manufacture a wide variety of valves.

  • 5-axis Machining Centres
  • CNC VTLs
  • CNC Rotary Surface Grinding Machine
  • SMAW. MIG, Pasma Arc Welding Machines
  • EOT Cranes of capacity 20 tons

Occupational health and safety as well as environmental protection are accorded prime importance and guide all aspects of anufacturing at the plant.

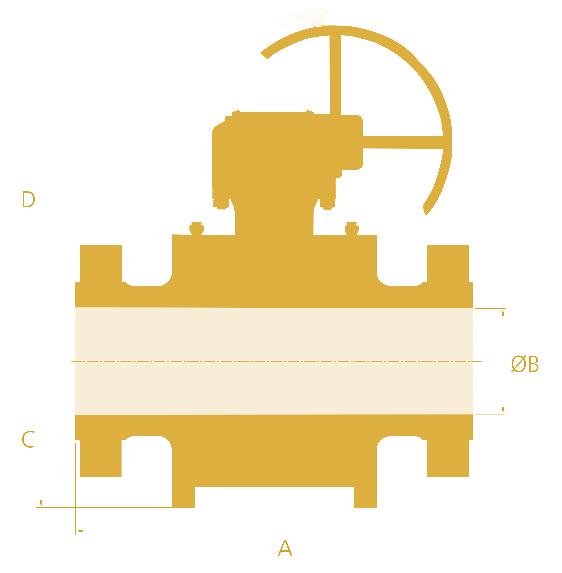

Trunnion-mounted Ball Valves
Dimension & Weight
CLASS #150
UNIT: mm
Size2-piece3-piece
ABCDWt.ABCDWt.
NPSRFRTJBWFLBWRFRTJBWFLBW
217819121649601602016--------
320321628374902603530--------
42292413051001052804540--------
6394406457150160485140120--------
8457470521201215595235205457470521201320600290260
CLASS #300
UNIT: mm
Size2-piece3-piece
ABCDWt.ABCDWt.
NPSRFRTJBWFLBWRFRTJBWFLBW
221623221649752502520--------
328329828374902604540--------
43053213051001303807565--------
6403419457150165485180160--------
8502518521201235595290255502518521201360610355260
CLASS #600
UNIT: mm
Size2-piece3-piece
ABCDWt.ABCDWt.
NPSRFRTJBWFLBWRFRTJBWFLBW
229229529249752503530--------
3356359356741053556555--------
4432435432100130450110100--------
6559562559150175565295270--------
8660664660201235645450400660664660201340575480435

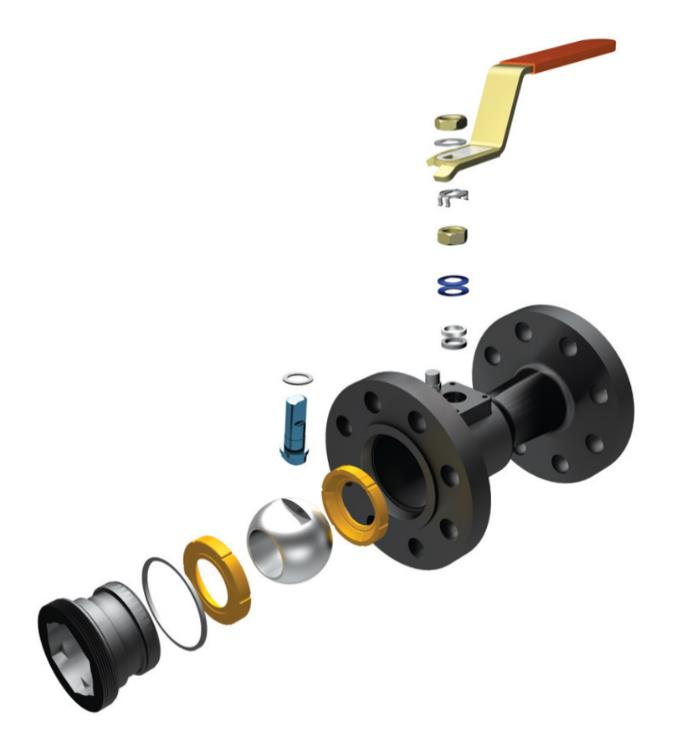

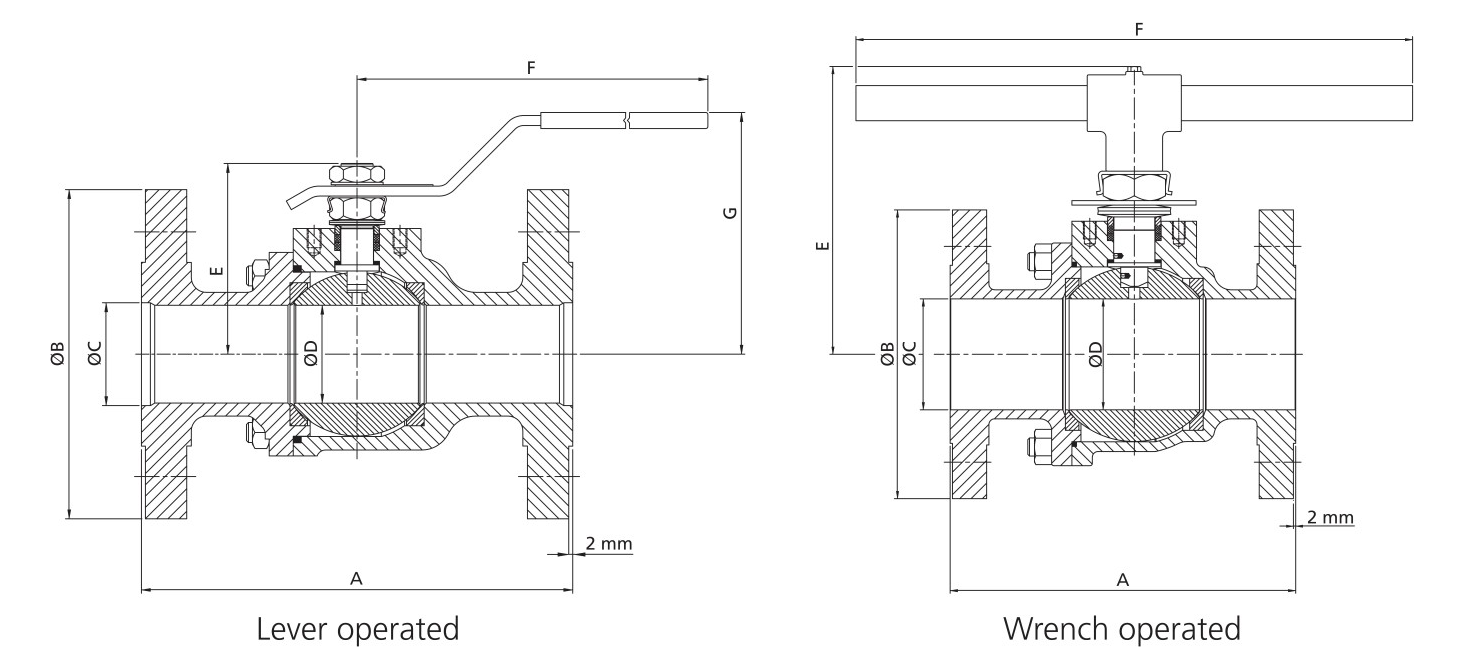

Single piece Ball Valves
Dimension & Weight
SizeABCDEFGWt.ISO 5211 Base
DNNPS#150#300#150#300#150#300#150#300
5021782161501655137752101226.59F05F05
803203282190210766217539015.522F07F07
1004229305230255102741953902535F07F07
150626740328032015298245*4065F10F12

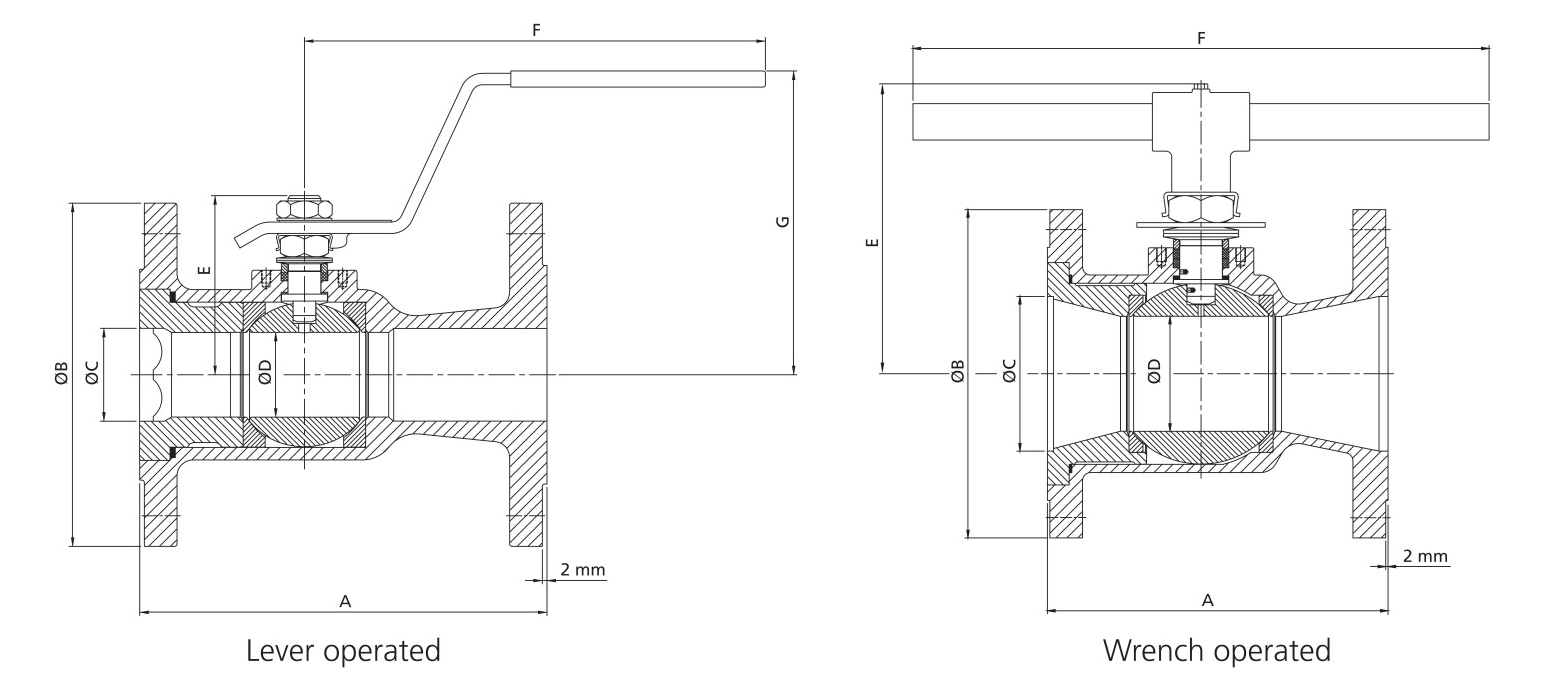

Two Piece Ball Valves
Dimension & Weight
SizeABCDEFGWt.ISO 5211 Base
DNNPS#150#300#150#300#150#300#150#300#150#300
5021782161501655149103103212142912F07F07
80320328219021076741851953901928F07F07
100422930523025510298235247*3145F10F12
1506394403280320152148285315**78105F12F14
2008457502345380203198345371980142169F14F16
